如何在 CentOS 7 用 cPanel 配置 Nginx 反向代理

Nginx 是最快和最强大的 Web 服务器之一，以其高性能和低资源占用率而闻名。它既可以被安装为一个独立的 Web 服务器，也可以安装成反向代理 Web 服务器。在这篇文章，我将讨论在安装了 cPanel 管理系统的 Centos 7 服务器上安装 Nginx 作为 Apache 的反向代理服务器。

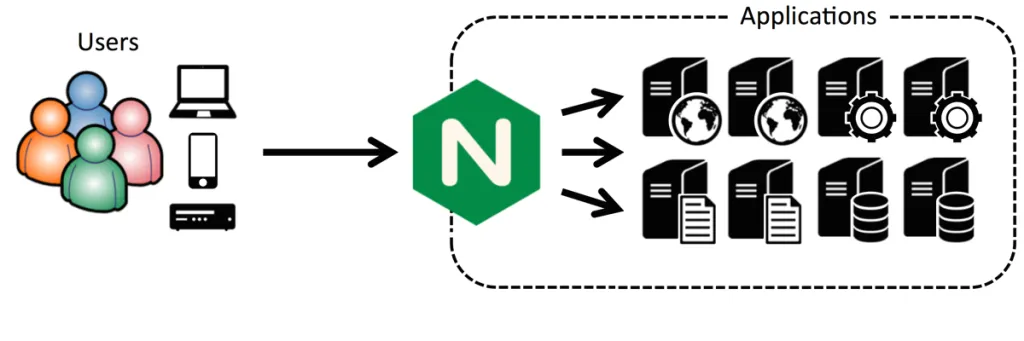

Nginx 作为前端服务器用反向代理为静态文件提供服务，Apache 作为后端为动态文件提供服务。这个设置将整体提高服务器的性能。

让我们过一遍在已经安装好 cPanel 11.52 的 CentOS 7 x86_64 服务器上配置 Nginx 作为反向代理的安装过程。

首先，我们需要安装 EPEL 库来启动这个进程

第一步: 安装 EPEL 库

root@server1 [/usr]# yum -y install epel-release
Loaded plugins: fastestmirror, tsflags, universal-hooks
Loading mirror speeds from cached hostfile
* EA4: 66.23.237.210
* base: mirrors.linode.com
* extras: mirrors.linode.com
* updates: mirrors.linode.com
Resolving Dependencies
--> Running transaction check
> Package nDeploy-release-centos.noarch 0:1.0-1 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

========================================================================================
Package Arch Version Repository Size
========================================================================================
Installing:
nDeploy-release-centos noarch 1.0-1 /nDeploy-release-centos-1.0-1.noarch 110

第三步：安装 nDeploy 和 Nginx nDeploy 插件

root@server1 [/usr]# yum --enablerepo=ndeploy install nginx-nDeploy nDeploy
Loaded plugins: fastestmirror, tsflags, universal-hooks
epel/x86_64/metalink | 9.9 kB 00:00:00
epel | 4.3 kB 00:00:00
ndeploy | 2.9 kB 00:00:00
(1/4): ndeploy/7/x86_64/primary_db | 14 kB 00:00:00
(2/4): epel/x86_64/group_gz | 169 kB 00:00:00
(3/4): epel/x86_64/primary_db | 3.7 MB 00:00:02

Dependencies Resolved

========================================================================================
Package Arch Version Repository Size
========================================================================================
Installing:
nDeploy noarch 2.0-11.el7 ndeploy 80 k
nginx-nDeploy x86_64 1.8.0-34.el7 ndeploy 36 M
Installing for dependencies:
PyYAML x86_64 3.10-11.el7 base 153 k
libevent x86_64 2.0.21-4.el7 base 214 k
memcached x86_64 1.4.15-9.el7 base 84 k
python-inotify noarch 0.9.4-4.el7 base 49 k
python-lxml x86_64 3.2.1-4.el7 base 758 k

Transaction Summary
========================================================================================
Install 2 Packages (+5 Dependent packages)

通过以上这些步骤，我们完成了在我们的服务器上 Nginx 插件的安装。现在我们可以配置 Nginx 作为反向代理和为已有的 cPanel 用户账户创建虚拟主机，为此我们可以运行如下脚本。

第四步：启动 Nginx 作为默认的前端 Web 服务器，并创建默认的配置文件

root@server1 [/usr]# /opt/nDeploy/scripts/cpanel-nDeploy-setup.sh enable
Modifying apache http and https port in cpanel

httpd restarted successfully.
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/ndeploy_watcher.service to /usr/lib/systemd/system/ndeploy_watcher.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/ndeploy_backends.service to /usr/lib/systemd/system/ndeploy_backends.service.
ConfGen:: saheetha
ConfGen:: satest

你可以看到这个脚本将修改 Apache 的端口从 80 到另一个端口来让 Nginx 作为前端 Web 服务器，并为现有的 cPanel 用户创建虚拟主机配置文件。一旦完成，确认 Apache 和 Nginx 的状态。

Apache 状态：

root@server1 [/var/run/httpd]# systemctl status httpd
● httpd.service - Apache Web Server
Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2016-01-18 06:34:23 UTC; 12s ago
Process: 25606 ExecStart=/usr/sbin/apachectl start (code=exited, status=0/SUCCESS)
Main PID: 24760 (httpd)
CGroup: /system.slice/httpd.service
‣ 24760 /usr/local/apache/bin/httpd -k start

Jan 18 06:34:23 server1.centos7-test.com systemd[1]: Starting Apache Web Server...
Jan 18 06:34:23 server1.centos7-test.com apachectl[25606]: httpd (pid 24760) already running
Jan 18 06:34:23 server1.centos7-test.com systemd[1]: Started Apache Web Server.

Nginx 状态：

root@server1 [~]# systemctl status nginx
● nginx.service - nginx-nDeploy - high performance web server
Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)
Active: active (running) since Sun 2016-01-17 17:18:29 UTC; 13h ago
Docs: http://nginx.org/en/docs/
Main PID: 3833 (nginx)
CGroup: /system.slice/nginx.service
├─ 3833 nginx: master process /usr/sbin/nginx -c /etc/nginx/nginx.conf
├─25473 nginx: worker process
├─25474 nginx: worker process
└─25475 nginx: cache manager process

Jan 17 17:18:29 server1.centos7-test.com systemd[1]: Starting nginx-nDeploy - high performance web server...
Jan 17 17:18:29 server1.centos7-test.com nginx[3804]: nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
Jan 17 17:18:29 server1.centos7-test.com nginx[3804]: nginx: configuration file /etc/nginx/nginx.conf test is successful
Jan 17 17:18:29 server1.centos7-test.com systemd[1]: Started nginx-nDeploy - high performance web server.

Nginx 作为前端服务器运行在 80 端口，Apache 配置被更改为监听 http 端口 9999 和 https 端口 4430。请看他们的情况：

root@server1 [/usr/local/src]# netstat -plan | grep httpd
tcp 0 0 0.0.0.0:4430 0.0.0.0:* LISTEN 17270/httpd
tcp 0 0 0.0.0.0:9999 0.0.0.0:* LISTEN 17270/httpd
tcp6 0 0 :::4430 :::* LISTEN 17270/httpd
tcp6 0 0 :::9999 :::* LISTEN 17270/httpd

root@server1 [/usr/local/src]# netstat -plan | grep nginx
tcp 0 0 127.0.0.1:80 0.0.0.0:* LISTEN 17802/nginx: master
tcp 0 0 45.79.183.73:80 0.0.0.0:* LISTEN 17802/nginx: master

为已有用户创建的虚拟主机的配置文件在 “/etc/nginx/sites-enabled”。这个文件路径包含了 Nginx 主要配置文件。

root@server1 [/etc/nginx/sites-enabled]# ll | grep .conf
-rw-r--r-- 1 root root 311 Jan 17 09:02 saheetha.com.conf
-rw-r--r-- 1 root root 336 Jan 17 09:02 saheethastest.com.conf

一个域名的示例虚拟主机：

server {

listen 45.79.183.73:80;
#CPIPVSIX:80;

# ServerNames
server_name saheetha.com www.saheetha.com;
access_log /usr/local/apache/domlogs/saheetha.com main;
access_log /usr/local/apache/domlogs/saheetha.com-bytes_log bytes_log;

include /etc/nginx/sites-enabled/saheetha.com.include;

}

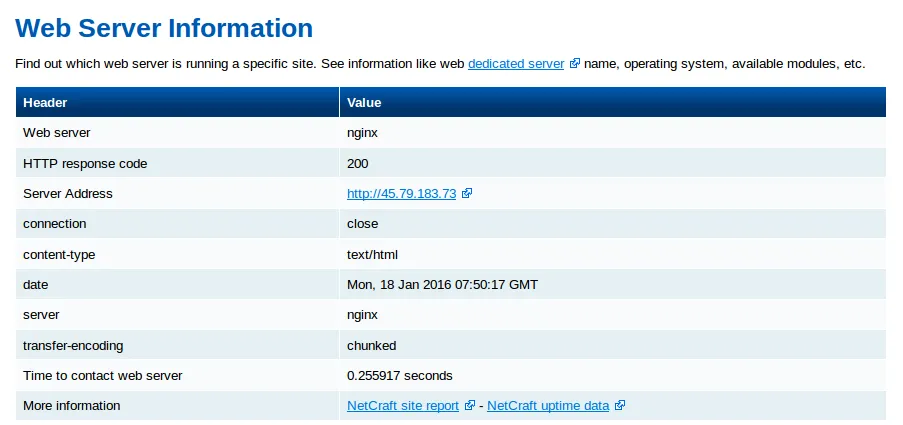

我们可以启动浏览器查看网站来确定 Web 服务器的工作状态。安装后，请阅读服务器上的 web 服务信息。

root@server1 [/home]# ip a | grep -i eth0
3: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
inet 45.79.183.73/24 brd 45.79.183.255 scope global dynamic eth0
root@server1 [/home]# nginx -v
nginx version: nginx/1.8.0

Nginx 将会为任何最新在 cPanel 中创建的账户创建虚拟主机。通过这些简单的的步骤，我们能够在一台 CentOS 7 / cPanel 的服务器上配置 Nginx 作为反向代理。

Nginx 作为反向代理的优势

便于安装和配置。
效率高、性能好。
防止 Ddos 攻击。
支持使用 .htaccess 作为 PHP 的重写规则。

我希望这篇文章对你们有用。感谢你看它。我非常高兴收到你的宝贵意见和建议，并进一步改善。
